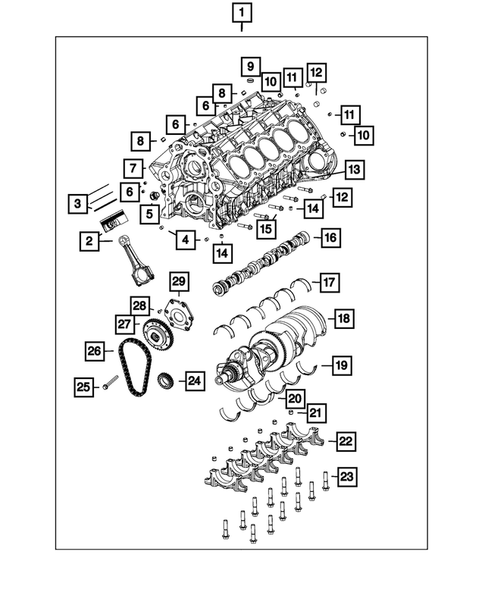

Cylinder Block for 2015 Dodge Viper
No.
Part # / Description / Price
Price
2
Piston Pin And Rod, Right Side
Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Standard. Cylinders 1-3-5-7-9. Cylinders 2-4-6-8-10.
MSRP $46.45
$31.52
MSRP $46.45
$31.52
2
Piston Pin And Rod, Right Side Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Cylinders 2-4-6-8-10.
2
Piston Pin And Rod, Right Side Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Cylinders 1-3-5-7-9. Cylinders 2-4-6-8-10.
2
Piston Pin And Rod, Left Side Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Cylinders 1-3-5-7-9.
4
Engine Block To Bedplate Dowel Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Engine Oil Pan To Cylinder Block. Timing Case Cover To Cylinder Block. Cylinder Head To Cylinder Block. Engine Block To Bedplate. [id-9.0/od-12.0/lg-12.0].
5
Male Fitting Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Oil Line. [Thread 7/8-14 UNF-2A]. Inlet or Outlet.
MSRP $16.35
$12.32
MSRP $16.35
$12.32
6
Pipe Plug Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: [.250-18x.560]. Oil Gallery Block Off. Cylinder Block Oil Gallery. [.125-27x.31]. [.125-27x.310] Oil Galley.
MSRP $20.40
$15.24
MSRP $20.40
$15.24
8
Oil Pump Dowel Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: .620Dx.50. Main Bearing Cap To Cylinder Block. [.62odx.50]. Block to #3 Main Cap. Block to Cylinder Head.
MSRP $15.70
$11.81
MSRP $15.70
$11.81
9
Core Plug Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: [.250-18x.560]. Water Jacket. [1 Inch Diameter]. 1.00 Diameter. Cylinder Block Coolant Jacket Drain. [.375-18x.475]. Oil Gallery Block Off.
MSRP $28.20
$21.32
MSRP $28.20
$21.32
10
Dowel Pin Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Transmission Adapter To Transmission. Flywheel Housing. [M18x10]. Clutch Housing To Block. Mounting Transmission To Cylinder Block.
MSRP $114.00
$77.30
MSRP $114.00
$77.30
11
Dowel Pin, Mounting Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Rear Main Oil Seal Retainer To Cylinder Block. [.250]. Reair Main Oil Seal Retainer.
12
Pipe Plug, Left Cylinder Head Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Oil Gallery In In Cylinder Head Valley. Also Serviced With Item 1. Chain Case Cover and. Also serviced wih Cover. Oil Gallery Block Off. [.375x18x.475]-. 375-18x.475. Cylinder Block Gallery. Water Jacket.
MSRP $4.70
$3.58
MSRP $4.70
$3.58
13
MSRP $265.00
$209.15
15
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Main Bearing Cap To Cylinder Block. [M10x1.50x55.00]. Crankshaft Bearing. BedPlate to Cylinder Block.
MSRP $33.00
$25.38
MSRP $33.00
$25.38
16
MSRP $2,675.00
$1,699.12
23
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: M12x1.00xM12x1.75x144.00. Main Bearing Cap To Cylinder Block.
MSRP $39.20
$26.62
MSRP $39.20
$26.62
25
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Phaser Drive Plate To Camshaft. M10x1.5x90. Bracket to Block.
28
6 Lobe Recessed Head Bolt, Mounting Right Side Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Camshaft Thrust Plate To Cylinder Block. Oil Baffle To Cylinder Head Cover. Separator To Cylinder Head Cover. Baffle To Engine Oil Pan. M6x1.00x18.00.
